for spring plungers Ball buttons |
GN 249 |

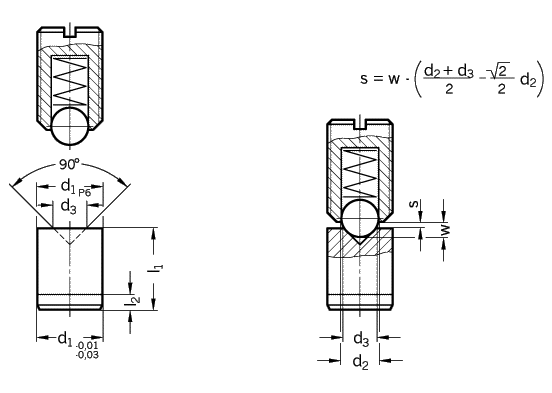

| d1 p6 | d2 | d3 | l1 0,05 | l2 | w | s | s | s | s |
| for GN 614 | for GN 615 | for GN 615.1 | for GN 616 | ||||||
| 4 | 1,5 | 5 | 2 | - | M 4 = 0,6 | M 4 = 1,1 | M 4 = 1,1 | ||
| 5 | see corres- | 2 | 6 | 2 | see corres- | ( 4 = 0,4 | M 5 = 0,4 | M 5 = 1,5 | M 5 = 1,8 |
| 6 | ponding | 2 | 8 | 2 | ponding | ( 5 = 0,8 | M 6 = 0,9 | M 6 = 1,6 | M 6 = 2,1 |
| 8 | standard | 3 | 10 | 2 | standard | ( 6 = 1,1 | M 8 = 1,2 | M 8 = 1,3 | M 8 = 2,2 |
| 10 | sheets | 4 | 12 | 3 | sheets | ( 8 = 1,2 | M 10 = 1,2 | M 10 = 1,4 | M 10 = 1,8 |
| 12 | 6 | 14 | 3 | ( 10 = 1,9 | M 12 = 1,2 | M 12 = 1,7 | M 12 = 2,2 | ||
| 16 | 8 | 18 | 3 | ( 12 = 1,9 | M 16 = 1,6 | M 16 = 2,3 | M 16 = 2,5 |
| Specification | Information | How to order |
| Steel
hardened and ground |
Ball buttons GN 249 are mainly used when exact
positioning is needed.
These ball buttons are especially recommended for use with plungers with heavy spring loads. Spring plungersGN 614 Spring plungersGN 615 St. Steel-Spring plungersGN 615 Spring plungersGN 615.1 St. Steel-Spring plungersGN 615.1 Spring plungersGN 616 St. Steel-Spring plungersGN 616 |
Ball button GN 249-8 Code No. 249 |
|
|
