Hand knobs with indexing plunger |
GN 6336.7 |

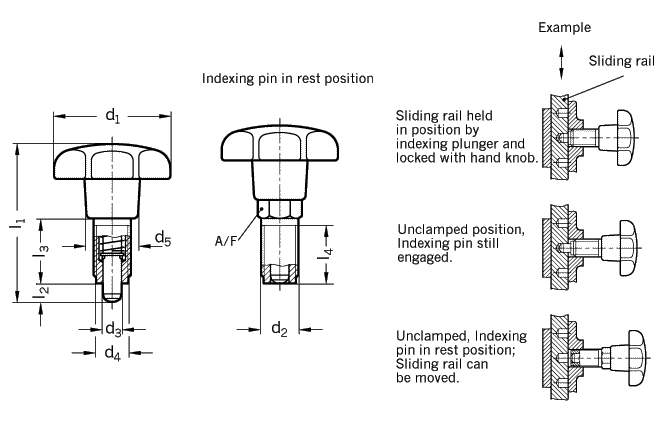

| d1 | d2 | d3 | d4 | d5 | l1 | l2 | l3 | l4 | A/F | Spring load N ~ | |
| Plunger-0,02 -0,04 |
min. | initial | end | ||||||||
| Bore H7 | |||||||||||
| 32 | M 10 x 1 | 5 | 8,6 | 15,5 | 44 | 5 | 19 | 17 | 10 | 7 | 16 |
| 40 | M 12 x 1,5 | 6 | 9,9 | 19 | 52 | 6 | 21 | 19 | 12 | 6,5 | 15 |
| 50 | M 16 x 1,5 | 8 | 13,9 | 22,5 | 68 | 8 | 28 | 26 | 16 | 12 | 31 |
| Specification | Information | How to order |
| Hand knob DIN 6336 Plastic Technopolymer (Polyamide) reinforced black, matt finish threaded shank in steel Plunger |
Hand knobs with plunger type GN 6336.7 are used in
applications where adjustable stops have to be re-positioned, clamped and
locked simultaneously held and clamped.
By pulling the hand knob the spring loaded plunger is withdrawn from its rest position. Since the hand knob is bonded to the hexagonal head of the plunger it can be used for either clamping or unclamping. |
Hand knobs with indexing plunger GN 6336.7-40-M12x1,5-6 Code
No. 6336.7 |
|
|
