Control levers

GN 750

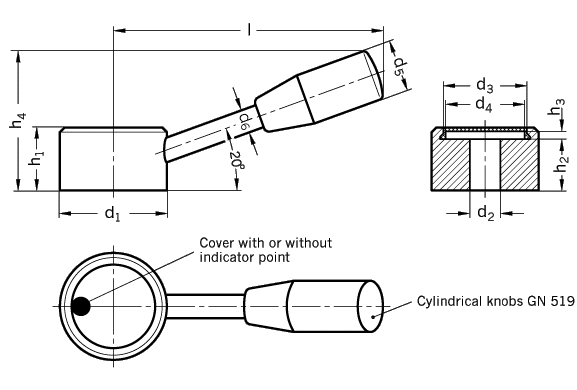

Type M Cover with indicator point Type N Cover plain
d1 d2 H7   d3 d4 d5 d6 h1 h2 h3 h4 l
  Bore (B)

32 B 10 - 25 23 18 8 21 15 4,2 43 84
40 B 10 B 12 32 30 21 9 25 19 4,0 54 106
50 B 14 B 16 40 37,5 23 11 28 22 3,8 63 130
Specification Information How to order
Steel

fine turned resp. ground
blackened

Cover
Plastic, light grey

Cylindrical knob GN 519
Plastic (Duroplast)
black

The cylindrical shape of the hub together with the light grey cover give these control levers GN 750 a pleasing appearance.

The cover hides fasteners (seeassembly instructions) and provides a printing facility for any symbol or logo.

On assembly, the cover is pushed in by hand and can be removed with a screw driver via a suitable slot.

Control levers can also be supplied as standard with:

SquareDIN 79

KeywayDIN 6885

Control lever
GN 750-32-B10-N

Code No. 750
d1 32
d2 B10
Type N
