St. Steel - Tension levers |
GN 212 |

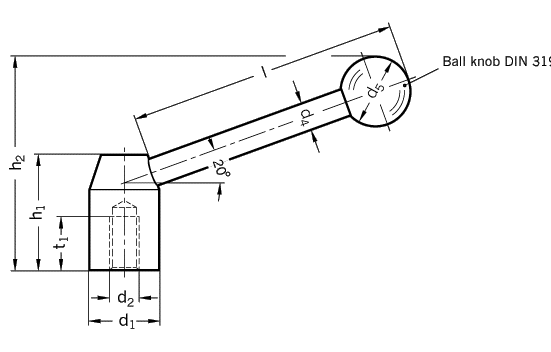

| Type E angled lever with threaded bore |
| d1 | d2 | d4 | d5 | h | l | t1 |
| min. | ||||||
| 22 | M 8 | 8 | 20 | 37 | 70 | 12 |
| 25 | M 10 | 10 | 25 | 42 | 96 | 15 |
| 28 | M 12 | 12 | 30 | 47 | 110 | 18 |
| 32 | M 16 | 12 | 32 | 52 | 110 | 23 |
| Specification | Information | How to order |
| Stainless Steel (NI) German Standard No. 1.4305
Surface
Ball knob DIN 319 Tension levers with cylindrical knobs (instead of ball knobs) available under Code No. GN 216. Cylindrical knob GN 519 |
St. Steel-Tension levers GN 212 are used as clamping element as well as operating levers. Adjustable St. Steel-Tension levers GN 212.5 |
St. Steel-Tension lever GN 212-25-M10-E-NI
Code No. 212 |
|
|
|
