Control knobs |
GN 726 |
| Type N Hub cover plain | Identification No. 1 with grub screw |
| Type M Hub cover with symbol | Identification No. 2 with collet |

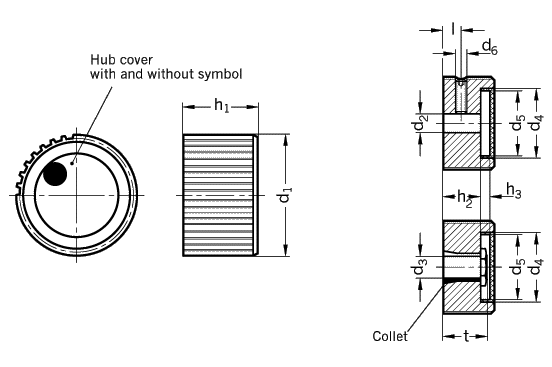

| d1 | d2 H8 | d3 | d4 | d5 | d6 | h1 | h2 | h3 | l | t | |
| Bore (B) | Collet | ||||||||||
| (Z) | |||||||||||
| 22 | B 5 | � | � | 16 | 14 | M 4 | 15 | 9 | 4,3 | 5 | � |
| 27 | B 6 | � | Z 6 | 20 | 18 | M 4 | 17 | 11 | 4,3 | 5,5 | 14 |
| 34 | B 6 | B 8 | Z 8 | 25 | 23 | M 5 | 20 | 14 | 4,2 | 7 | 17 |
| 42 | B 8 | B 10 | Z 10 | 32 | 30 | M 5 | 23 | 17 | 4 | 8,5 | 20 |
| Specification | Information | How to order |
| Aluminum
black anodized Hub cover Collet / hex. nut St.Steel - Grub screw DIN 916 |
The light grey cover makes these control knobs GN 726
very attractive and at the same time it "covers the hub. The cover also
lends itself for your logo or other symbols.
The cover is held in place by firmly pushing it into the recess. It can be removed by inserting a screw driver into the slot provided. The collet provides a simple way of positioning and locking the control knob to the shaft. Made from an aluminum extrusion allows the manufacture of specials in existing diameters at relatively low cost. Control knobs GN 726.1 Control knobs GN 726.2 |
Control knob GN 726-34-Z8-M-2 Code No. 726 |
|
|
