Scale rings GN 164

Scale rings

GN 164

Bore Code:
without friction ring = B + Bore diameter	Type MCR matt chrome plated plain, without graduations or numbers
with friction ring = R + Bore diameter	Type MCRS matt chrome plated standard scale

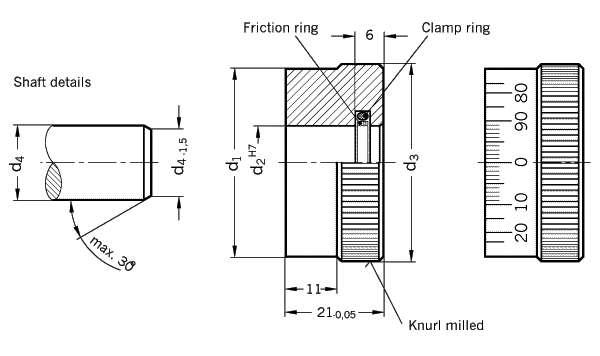

d₁ 0,02	d₂ H7		d₃	d₄ -0,02/-0,05
	Bore

30	12	14	31,7	12	14
40	14	16	41,3	14	16
50	16	18	51,8	16	18

Specification

Information

How to order

Steel

Graduations and numbers
LASER-engraved, black

Clamp ring (Type R)
NBR synthetic rubber

Friction ring
Technopolymer (Polyamide)

The non-wearing friction ring ensures perfect engagement of the scale ring when re-aligning the spindle. In addition it allows the setting of the scale ring on a static shaft.

Other connecting elements between scale ring and spindle have been eliminated which has made this new design more cost effective.

In addition to the standard scale (Type MCRS) the latter can be supplied with anytype of scale.

Control knobs GN 736.1
(with handle and graduations)

Scale ring
GN 164-50-R16-MCRS

Code No. 164
d₁ 50
Bore Code R
d₂ 16
Type MCRS

Scale ring
GN 164-40-R14

Code No. 164
d₁ 40
Bore Code R
d₂ 14

The above specimen of "How to order" is meant for a scale ring without graduation and blank.
