  		 pressfit, without thrust pin
Side thrust pins
GN 714

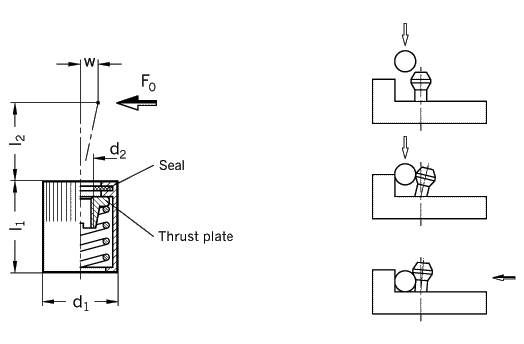

d1 Side thrust force F0 [N] d2 d3 H8 h l1 -1 l2 w Code No.
  at l2     min.     adjustable Installation
            distance pin
            at l2

10 20 50 100 M 4 10 12 12 4 1,6 GN 715.1-5,6
10 40 75 150 M 4 10 12 12 7,5 2 GN 715.1-5,6
16 100 200 300 M 6 16 18 18 11,5 3,2 GN 715.1-10
Specification Information How to order
Body

Aluminum

without seal: silver, anodized
with seal: gold, anodized

Thrust plate
with female thread
hardened and blackened


Thrust spring coding
Thrust light: silver
 medium: gold
 heavy: copper

Seal rubber
NBR (PERBUNAN)

 Side thrust pins GN 714 are the result of further development of GN 715. It is left to the customer to design his own thrust pin which can be screwed into the thrust plate.

This design extends the field of applications for side thrust pins offering identical advantages i.e.

they eliminate costly alternatives, are space saving and are simple to install. The knurled body requires bore to H8 tolerance only.

For easy mounting suitable tool GN 715.1 -... is available.

Technical instructions

Eccentric bushesGN 715.2

 Side thrust pin
GN 714-16-200

Code No. 598.1
d1 16
Side thrust F0 200
