  		 Threaded body
Side thrust pins
GN 713

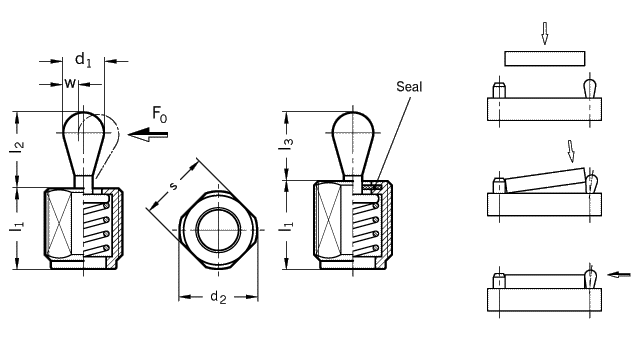

Type SA without seal Type SB with seal
d1 Side thrust force F0 ~ [N] l1 -1,5     d2 a1 a2

5 20 50 100 11,5 19 26,5 M 12 2,5 5,7
6 40 75 150 11,5 19 26,5 M 12 3 7,7
10 100 200 300 18 31,5 45 M 18 x 1,5 5 10,7
d1 k l2 l3 s w x1 x2 Code No.
                Spanner

5 1,5 x 45° 6 6 10 1,6 1,7 1,3 GN 713.1-5,6
6 1,5 x 45° 10,7 10 10 2 1,9 1,4 GN 713.1-5,6
10 2 x 45° 16,7 16 16 3,2 3,4 2,7 GN 713.1-10
Specification Information How to order
Body steel
zinc plated

without seal: blue anodized
with seal: yellow anodized

Thrust pin
steel hardened,
zinc plated, blue anodized

Thrust spring coding
Thrust light:  silver
 medium: gold
 heavy: copper

Seal rubber
NBR (PERBUNAN)

 Spring loaded side thrust pins GN713 are versatile and practical elements for holding, positioning and clamping workpieces.

They eliminate costly alternatives, are space saving and simple to install. The protruding height of the thrust pin can be adjusted with the threaded body.

To insert these side thrust pins suitable spanners GN 713.1...are available.

Technical instructions

Side thrust pins GN 715
(press fit)

 Side thrust pin
GN 713-6-75-12-SB

Code No. 713
d1 6
Side thrust F0 75
l1 12
Type SB
