  		 with male thread
Hand knobs
GN 6336.4

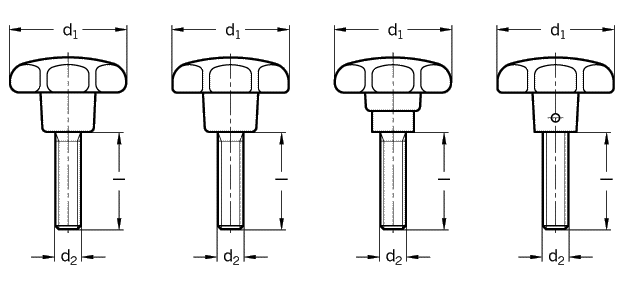

Type SK Type ST Type TE Type SG
Hand knob DIN 6336 Type K Hand knob DIN 6336 Type K Hand knob GN 6336.2 Hand knob DIN 6336
Plastic (KU) Plastic (KT) Plastic Cast iron (GG)
Duroplast Technopolymer Technopolymer
d1 d2 Length l - Type ST Length l - Type SK, SG Length l - Type TE

25 M5 10 15 20 25 30
32 M6 10 16 20 25 30 35 45   16 20 25 30 35 45 16 20 25 30 35
40 M8 16 20 25 30 35 40 50 55 16 20 25 30 40 55 16 20 25 30 45

50 M10 15 20 25 30 35 40 45 55 25 30 35 45 55   25 30 35 45 55
63 M12 20 25 30 35 40 50 60   30 35 40 50 60   30 35 40 50 60
80 M16 30 40 50 60 70
Specification Information How to order
Hand knob details and
dimensions see:

DIN 6336 Type K
GN 6336.2 Type E
DIN 6336 Type E

On types SK / ST / TE
steel screws are zinc plated
and moulded in position.

On type SG a grub screw is
screwed in and secured by a
cross-dowel.

Grub screwsGN 551.1

 Should clamping with the boss face be necessary, then it is recommendable to use either type TE or type SG. Hand knob
GN 6336.4-SK-50-M10-45

Code No. 6336.4
Type SK
d1 50
d2 M10
Length l 45
