with limit switch Spring plungers |
GN 615.6 |

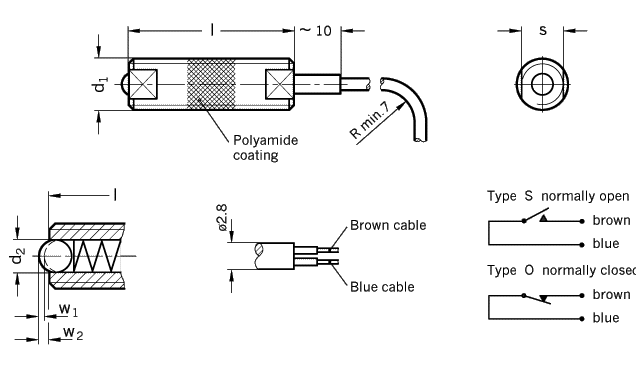

| Type S normally open | Type O normally closed |
| d1 | d2 | l | s | w1 �0,1 | w2 �0,1 | Spring load N ~ | |
| Switching | Spring | initial | end | ||||
| stroke | compression | ||||||
| M 6 | 3 | 20 | 5,5 | 0,4 | 0,8 | 6 | 13 |
| M 8 | 4 | 23 | 7 | 0,5 | 1 | 8 | 16 |
| M 10 | 5 | 27 | 8 | 0,6 | 1,2 | 10 | 20 |
| Specification | Information | How to order |
| Screw Steel nickel plated hardened End limit switch Protection classification: IP40 Supply cable grey for type S |
Spring plungers GN 615.6 are used for end stops as well as
contacts
Simultaneously an electrical control signal can be released from the built-in limit switch. Attention: If the screw-in thread is earthed the blue cable has to be connected to the mass. Technical information regarding thread locking by polyamide patchis available. |
Spring plunger GN 615.6-M8-S Code
No. 615.6 |
|
|
