  		 long stroke
Spring plungers
GN 611

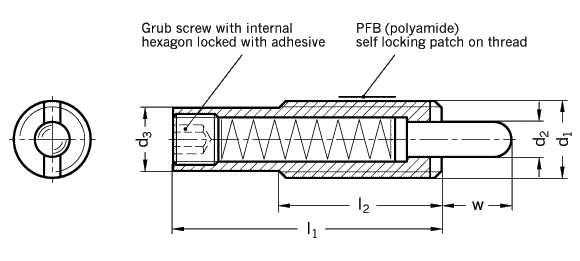

Type L standard spring load Type LS higher spring load
d1 d2 d3 l1 l2 A/F w Spring Load N~ Spring Load N~ Code No.
          Internal Com- Type L   Type LS Screw
          hexagon pression initial end initial end driver

M 10 4 7,8 35 25 3 8 6 16 - - GN 611.5-M10
M 12 5,5 9,5 43 35 4 10 4 18 12 44 GN 611.5-M12
M 16 8 13,4 58 35 6 15 9 33 10 57 GN 611.5-M16

M 16 8 13,4 58 35 6 20 4 23 - - GN 611.5-M16
M 16 8 13,4 98 35 6 30 13 47 20 80 GN 611.5-M16
Specification Information How to order
Steel

blackened

Plunger

hardened and ground

As identification for the higher spring load (type B),
the plunger is supplied blank.

 Spring plungers GN 611 are used as ejectors, push-on and push-off operations in the sheet metal industry, as well as cushioners.

The slot on the plunger side is provided for blind hole application.
A special screwdriver GN 611.5-M... is available.

Technical information regarding thread locking by polyamide coatingis available.

 Spring Plunger
GN 611-M16-15-L

Code No. 611
d1 M16
w 15
Type L
