Ball joint thrust pads |
GN 346 |
| d1 | d2 | l1 | l2 | t | A / F | Static load [N] |
| min. | (See | |||||
| Information) | ||||||
| 16 | M 8 | 19 | 7 | 9 | 13 | 500 |
| 20 | M 10 | 22 | 8 | 11 | 16 | 7500 |
| 24 | M 12 | 25 | 10 | 12 | 18 | 10000 |
| 30 | M 16 | 31 | 13 | 16 | 24 | 15000 |
| Specification | Information | How to order |
| Steel Tensile strength 500 N/mm2 zinc plated, blue passivated |

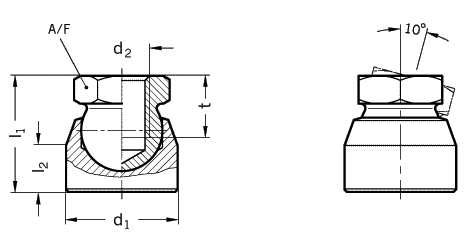

Ball joint thrust pads GN 346 are in general used for
transfer of clamping forces. They adjust themselves to uneven or
non-parallel surfaces and clamp without twisting the clamped parts.
The values were arrived at by a series of tests whereby a limited number of ball joint pads were subjected for a limited time to a vertical static load to the pads. At the values given in the table a permanent deformation of the ball is almost impossible. Ball joint thrust pads GN 346 can also be used as levelling feet with a small foot diameter. Levelling feet
GN 343.1/343.2 |
Ball joint thrust pad GN 346-20-M10 Code
No. 346 |
|
|
