Foot plastic / Threaded stud St. Steel
Levelling feet
GN 343.7
GN 343.8

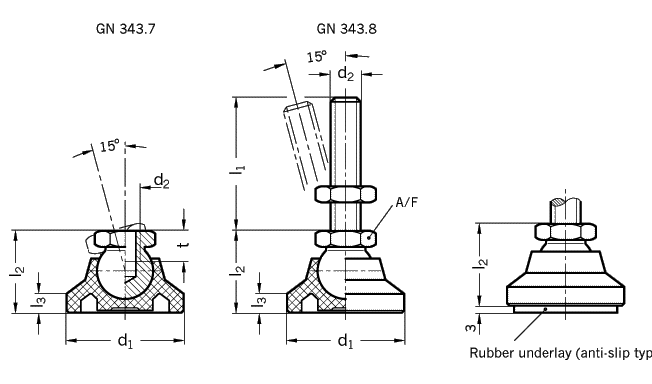

Type A without rubber underlay Type G with rubber underlay
d1 d2 l1   l2 l3 A/F t Static
              min. Load [N]
                for GN 343.8
                (See
                information)

25 M 8 40 63 19 4 13 9 5000
32 M10 50 80 23 5 16 10,5 7000
40 M12 63 100 26 6 18 11,5 10000

50 M12 63 100 28 7 18 11,5 10000
60 M16 80 125 36 8,5 24 16 14000
Specification Information How to order
Foot
Plastic
Thechnopolymer (Polyamide)
fibreglass reinforced

black, matt

restistant to oil, grease,
solutions and chemicals

Threaded stud
Stainless Steel
German Standard No. 1.4305

Hexagonal nut
ISO 4032
German Standard No. 1.4301

rubber underlay
NBR (PERBUNAN)
70 Shore hardness
black

GN 343.7
Levelling foot with female thread

GN 343.8
Levelling foot with threaded stud

Levelling feet GN 343.7 / GN 343.8 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

Exceeding the static values specified in the above table could lead to failure of the plastic component.

The above values have been arrived at by a series of load tests whereby a defined number of levelling feet were subjected to a vertical load over a defined period.

Depending on the application and load a safety margin has to be taken into account to ensure that the load is less than the permitted values given in the table. We cannot, however entertain any claims for damage caused by the use of these levelling feet.

Levelling foot
GN 343.7-32-M10-G
Code No. 343.7
d1 32
d2 M10
Type G

Levelling foot
GN 343.8-60-M16-125-A

Code No. 343.8
d1 60
d2 M16
l1 125
Type A





Levelling feet GN 343.7 / GN 343.8 are supplied assembled. The rubber underlay is safely fixed in the foot.
