  		 for screw mounting
Hinges
GN 129

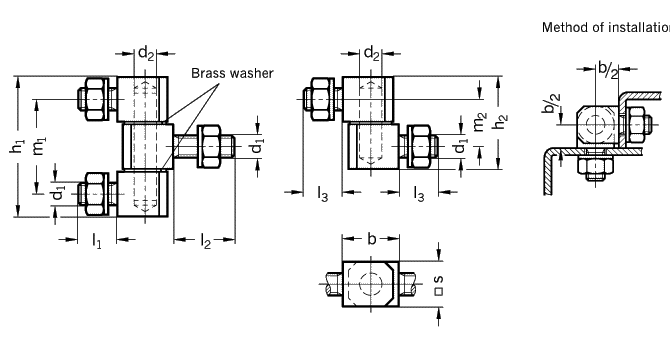

Type D consisting of 3 parts Type Z consisting of 2 parts
s b d1 d2 h1 h2 l1 l2 l3 m1 m2
square     Fulcrum
      pin

12 15 M 6 6 39,2 25,6 10 14 10 27,2 13,6
16 20 M 8 8 49 32,5 14 22 14 33 16,5
Specification Information How to order
Steel
zinc plated, blue passivated

Fulcrum pin
Brass, nickel-plated

Washer
Brass, nickel-plated

Hexagon nut ISO 4032
Steel, zinc plated,
blue passivated

Serrated disc
DIN 6797
zinc plated, blue passivated

 Hinges GN 129 are used for hatch type doors. The two part hinge allows the door to be unhinged.

Hinge GN 127
(for screw mounting, adjustable)

 Hinge
GN 129-16-D

Code No. 129
s 16
Type D
