  		 for screw mounting, adjustable
Hinges
GN 127

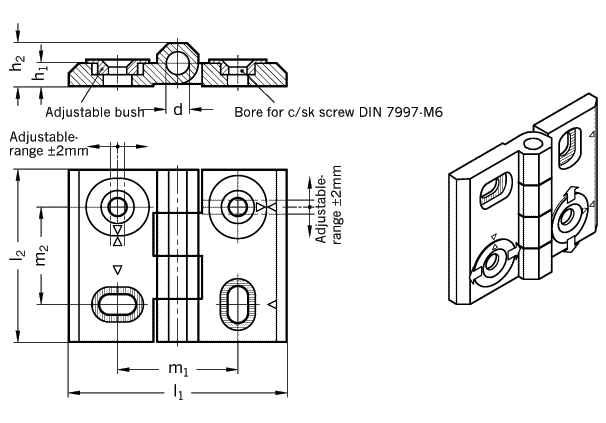

l1 l2 d h1 h2 m1 m2

76 60 8 8 15 42 34
Specification Information How to order
Zinc pressure
die-casting

Plastic coated
black

Fulcrum pin in St. Steel

 The hinge GN 127 offers the following advantages:

Its mounting position is adjustable horizontally as well as vertically. There are no oblong holes reducing the contact area of the screw head. In addition the serration on the back of the bush prevents the hinge from moving. The arrow points indicate the zero reference mark for ease of installation.

The adjustment facility allows a technically and optically perfect alignment of the door to its frame.

Hinge GN 129
(for screw mounting)

Hinge GN 128
(for weld mounting)

 Hinge
GN 127-76-60

Code No. 127
l1 76
l2 60
