  		 with DIN-symbols

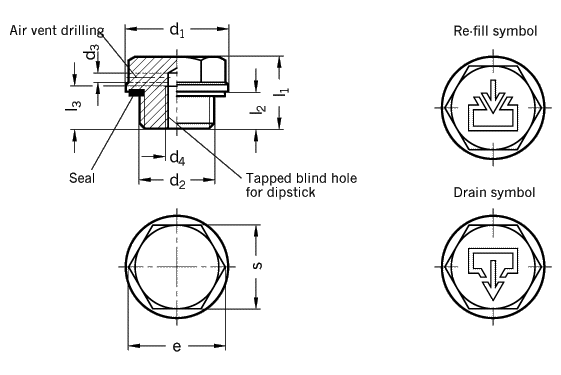

Threaded plugs		 GN 741
GN 742


Type OS plain
Type ES with DIN drain symbol
Type AS with DIN re-fill symbol
Coding 1 without vent drilling
Coding 2 with vent drilling
d1 d2   d3 d4 l1 l2 l3 s e ~
      Vent
      drilling

22 G 3/8 M 16 x 1,5 2 M5 15,5 8 8 18 20,8
26 G 1/2 M 20 x 1,5 2 M5 16 8,5 8 21 24,3
32 G 3/4 M 26 x 1,5 2 M5 17 9 8 27 31,2

40 G 1   2 M5 19,5 11 8 32 37
Specification Information How to order
Aluminum
matt shot-blasted

Symbols laser engraved

GN 741
Temperature resistant
up to 120 °C
Seal synthetic rubber
NBR (PERBUNAN)

GN 742
Temperature resistant
up to 200 °C
Seal rubber
FPM (VITON)

 Plugs GN 741 / GN 742 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN 3852.

The seal is bedded into a undercut groove which prevents it from dropping out and at the same time stops it from being extruded when tightening the cap. The seal can therefore be kept fairly soft which will improve sealing on uneven surfaces.

Threaded plugs GN 749
(steel)

 Threaded plugs
GN 741-26-G1/2-OS-1

Code No. 741
d1 26
d2 G1/2
Type OS
Coding 1

Threaded plugs
GN 742-32-M26x1,5-ES-2

Code No. 742
d1 32
d2 M26x1,5
Type ES
Coding 2
