Control knobs |
GN 736 |

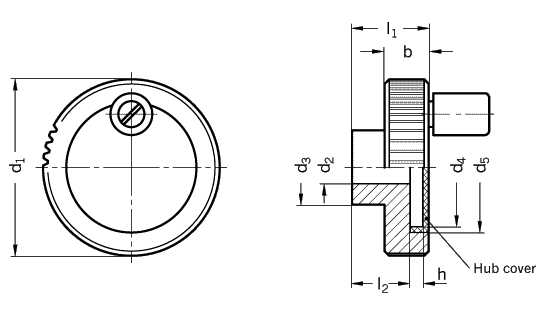

| Type A without handpiece | Type D with revolving handpiece |
| d1 | d2 H8 | d3 | d4 | d5 | b -0,5 | h | l1 | l2 | ||
| Bore | Handpiece | |||||||||
| without | with | |||||||||
| keyway | keyway | |||||||||
| 52 | B 10 | K 10 | 22 | 37 | 39,5 | 13 | 3,8 | 23 | 17 | 13 |
| 62 | B 10 | K 10 | 25 | 47 | 49,5 | 13 | 3,8 | 23 | 17 | 14 |
| Specification | Information | How to order |
| Aluminum black anodized
Hub cover plastic
Revolving handles GN 599 KeywayDIN 6885/1 Cross holesGN 110 |
Control knobs GN 736 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob. All Control knobs are produced with an ergonomically shaped and attractively designed rim. |
Control knob GN 736-62-B10-D
Code No. 736 |
|
|
|
