Cabinet 'U' handles

GN 728

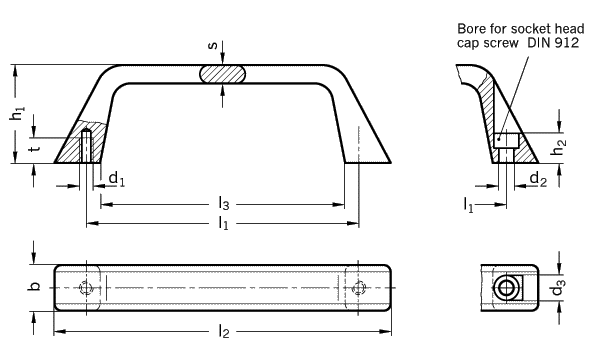

Type A mounting from the back with internal thread

Type B mounting from the operator's side with socket head cap screws

l1 b d1 d2 d3 h1 h2 l2 l3 s t
                    min.
120 22,5 M 6 6,4 11 43 13 147 108 8 10
180 27 M 8 8,4 13,5 48 16 215 166 10 12
Specification Information How to order
Aluminum
Pressure die casting

Plastic coated
black (SW)
RAL 9005 textured finish

blank (BL)
tumbled

Cabinet 'U' handles GN 728 are a low cost variant in metal.

The installation can be carried out from the back (type A) as well as from the operator's side (type B). The hole centers dimension is identical on all variants. As a result they can be mounted in pairs opposite each other.

Cabinet 'U' handle
GN 728-120-A-SW

Code No. 728
l1 120
Type A
Finish SW
