  		 Cast iron / Aluminum
Star knobs		 Extract from
DIN 6335

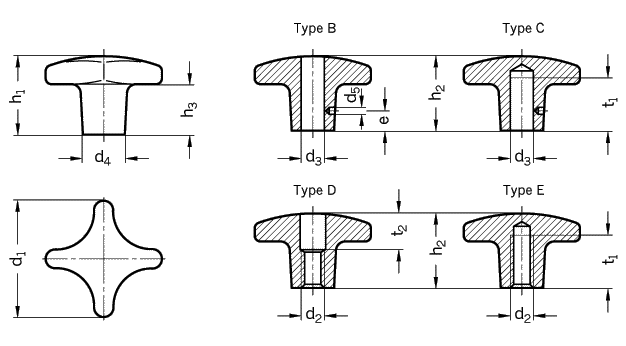

Type A casting only
Type B with plain through bore, Tol. H7 Type D with threaded through bore
Type C with plain blind bore, Tol. H7 Type E with threaded blind bore
d1 d2 d3 H7 d4 d5 e h1 h2 h3 t1 t2
  Thread Bore (B)       Type Type   min.
            A B-E

32 M 6 B 6 12 2,3 6 21 20 10 12 10
40 M 8 B 8 14 2,8 7 26 25 14 15 12
50 M 10 B 10 18 2,8 8 34 32 20 18 16

63 M 12 B 12 20 3,8 10 42 40 25 22 20
80 M 16 B 16 25 3,8 12 52 50 30 28 30
100 M 20 B 20 32 4,8 14 65 63 38 36 38
Specification Information How to order
Cast iron (GG)

fettled and tumbled

Aluminum (AL)
only size 40, 50, 63, 80
only type C, D ,E

matt (MT)
matt surface (linished)
flash mark not visible

polished (PL)

MT or PL to be specified
for hand knobs in aluminum

 Star knobs GN 6335.4
(with male thread)

Hand knobs GN 5336
(Aluminum)

 Star knob
DIN 6335-GG-63-M12-D
Code No. 6335
Material GG
d1 63
d2 (d3) M12
Type D

Star knob
DIN 6335-AL-50-B10-C-MT

Code No. 6335
Material AL
d1 50
d2 (d3) M10
Type C
Finish MT
