  		 male and female

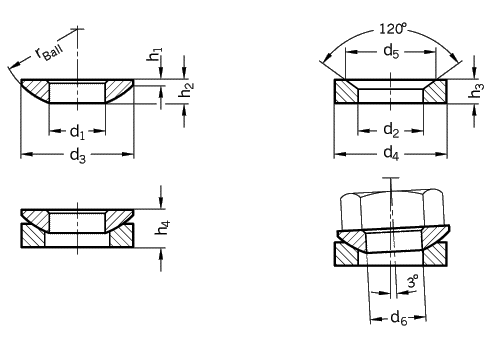

Spherical washers		 Extract from
DIN 6319


  Type D female with d4 = d3
Type C male Type G female with d4 > d3
d1 H12 d2 H12 d3 d4 d5 d6 h1 h2 h3 h4 r
      Type D Type G   Thread     Type D Type G Type D

6,4 7,1 12 12 17 11 M 6 0,7 2,3 2,8 4 4,2 9
8,4 9,6 17 17 24 14,5 M 8 0,6 3,2 3,5 5 5,6 12
10,5 12 21 21 30 18,5 M 10 0,8 4 4,2 5 6,5 15

13 14,2 24 24 36 20 M 12 1,1 4,6 5 6 8 17
15 16,5 28 28 - 24,8 M 14 1,2 5 5,6 - 8,5 22
17 19 30 30 44 26 M 16 1,3 5,3 6,2 7 9,6 22

21 23,2 36 36 50 31 M 20 2 6,3 7,5 8 11,7 27
25 28 44 44 60 37 M 24 2,4 8,2 9,5 10 15,2 32
31 35 56 56 68 49 M 30 3,6 11,2 12 12 19,2 41

37 42 68 68 - 60 M 36 4,6 14 15 - 23,5 50
43 49 78 78 - 70 M 42 6,5 17 18 - 29 58
50 56 92 92 - 82 M 48 8 21 22 - 35,5 67
Specification Information How to order
Type C / D:
Case hardening steel

Case hardened all round
depth 0,2 to 0,4 mm
hardness (550 + 100) HV 10

Type G:
Heat-treatable steel

quenched and tempered
hardness (350 + 80) HV 30

 Spherical washers DIN 6319 are used for clamping on non-parallel surfaces (see sketch).

Female washers Type G are mainly used on elongated holes.

When utilizing hexagon nuts with spherical seating DIN 6330the male washer is redundant.

 Spherical washer
DIN 6319-17-C

Code No. 6319
d1 17
Type C

Spherical washer
DIN 6319-19-D
Code No. 6319
d2 19
Type D
