Quick release knurled nuts |

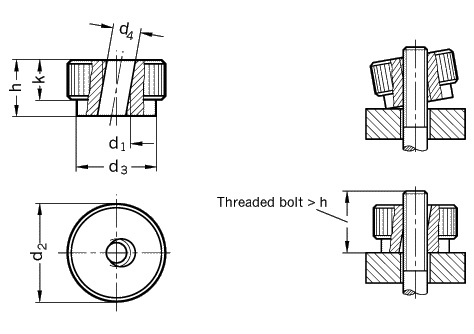

GN 6303.1 |
| d1 | d2 | d3 | d4 | h | k |
| M 6 | 24 | 16 | 6,2 | 14 | 10 |
| M 8 | 30 | 20 | 8,2 | 17 | 12 |
| M 10 | 36 | 28 | 10,3 | 20 | 14 |
| Specification | Information | How to order |
| Steel
blackened |
Quick release knurled nuts GN 6303.1 are used in such
applications where the nut has to be completely removed after the
releasing operation and re-fitted very rapidly for re-clamping.
The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping. Quick release hand knobsGN 6336.3 Knurled nutsDIN 6303 |
Quick release knurled nut GN 6303.1-M8 Code
No. 6303.1 |
|
|
