Indexing plungers GN 617

Indexing plungers

GN 617

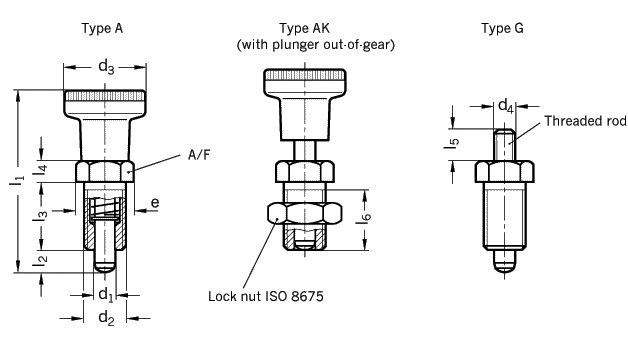

Type A without lock nut, with knob	Type G without lock nut, with threaded rod
Type AK with lock nut, with knob	Type GK with lock nut, with threaded rod

d₁	d₂	d₃	d₄	e	l₁~	l₂	l₃	l₄	l₅	l₆	A/F	Spring load N~
Plunger -0,02 -0,04 Bore H7	metric UNF / UNC					min.				min.		initial	end

5	M 10 x 1	21	M 5	13,8	45	5	17	5	6	15	12	7	16
	3/8 x 24

6	M 12 x 1,5	25	M 6	16,2	54,5	6	20	6	10	17	14	6,5	15
	1/2 x 13

8	M 16 x 1,5	31	M 8	21,9	69	8	26	8	12	23	19	12	31
	5/8 x 11

10	M 20 x 1,5	31	M 8	25,4	80	10	33	10	12	30	22	23	54

Specification

Information

How to order

Steel

blackened

Plunger
hardened and ground

Knob
Plastic (Technopolymer)
black matt finish
not removable

ISO-fits

Indexing plungers GN 617, type G or GK with threaded plunger end are for applications where a special knob to customers' own de-sign is required or for such cases where the spindle is linked direct to an operating mechanism.

When being in the end position (spring is "on block") the indexing plungers are constructed in such a way that also axial loads can be applied through the operator via knob are higher (type G) additional informations can be submitted on request.

Distance bushings GN 609
(hints for installation)

Indexing plungers GN 613
(without head)

Indexing plungers GN 617
(reduced dimensions)

Indexing plunger
GN 617-6-A

Code No. 617
d₁ 6
Type A

Indexing plunger
GN 617-6-A-UNC

Code No. 617
d₁ 6
Type A
Type of thread UNC
