Indexing plungers
GN 607.1


Type A without lock nut
Type AK with lock nut
d1 d2 d3 e ~ l1 l2 l3 -0,15 l4 A/F Spring load N~ Axial
Plunger
 -0,02
 -0,04
Bore H7		         min.       initial end load [N]


6 M 12 x 1,5 25 19,6 45 6 10 5 17 8,5 22 400
8 M 16 x 1,5 31 21,9 54 8 12 6 19 15,5 28 500
Specification Information How to order
Steel

blackened

Plunger
hardened and ground

Knob
Plastic (Technopolymer)
black matt finish
not removable

ISO-fits

 Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees "after being retracted.

The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position.

A feature of GN 607.1 is its reduced dimension. The locking tab is an integral part of the knob thus giving reliable operation at all times.

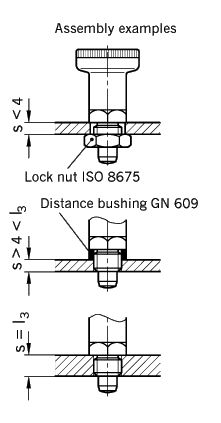

Distance bushings GN 609
(hints for installation)

Indexing plungers GN 608.1
(mounting with countersunk screws)

 Indexing plunger
GN 607.1-6-A

Code No. 607.1
d1 6
Type A
