St. Steel - Ball point screws |
GN 606 |

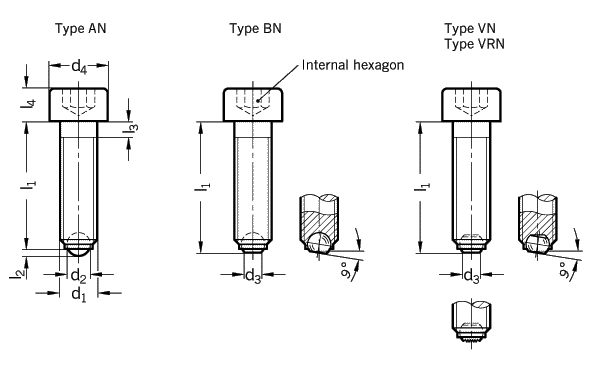

| Type AN full ball | Type VN flat ball, with swivel limiting stop |
| Type BN flat ball | Type VRN flat ball, with swivel limiting stop, corrugated |
| d1 | l1 | d2 | d3 | d4 | l2 | l3 | l4 | Internal | ||
| Nominal size | Hexagon | |||||||||
| M 6 | 20 | 30 | 40 | 4 | 3,2 | 10 | 0,8 | 3 | 6 | 5 |
| M 8 | 20 | 35 | 50 | 5,5 | 4,5 | 13 | 1,2 | 3,5 | 8 | 6 |
| M 10 | 25 | 40 | 60 | 7 | 6 | 16 | 1,7 | 4,5 | 10 | 8 |
| M 12 | 30 | 50 | 80 | 8 | 7,2 | 18 | 2 | 5 | 12 | 10 |
| M 16 | 40 | 60 | 80 | 12 | 10,7 | 24 | 3,3 | 6 | 16 | 14 |
| Specification | Information | How to order |
| Stainless Steel German Standard No. 1.4301 / 1.4125 Ball hardened |
St. Steel-Ball point screws GN 606 with full ball
(Type AN) are used in applications where a ball point contact is required.
The flat faced moving ball (Type BN) allows a clamping or supporting of non parallel surfaces. The ball of type VN/VRN can be swivelled to a "maximum of 9 to ensure that clamping is always maintained on the flat section of the ball. St. Steel-Ball point screws GN 605 |
St. Steel- Ball point screw GN 606-M16-40-AN Code
