for oil level sight glasses Fixing nuts |
GN 543.1 |

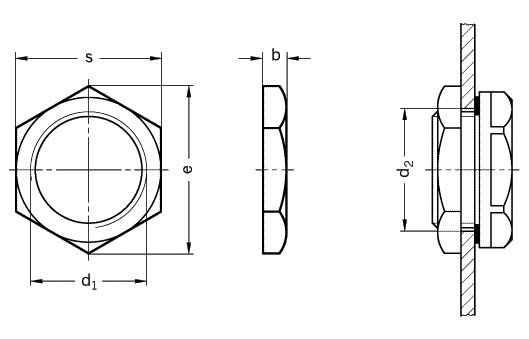

| d1 | d2 + 0,5 | b | s | e ( |
| Bore-� | ||||
| G 3/8 | 16,7 | 3,5 | 19 | 22 |
| G 1/2 | 21 | 4 | 26 | 30 |
| G 3/4 | 26,5 | 5 | 31 | 35,5 |
| G 1 | 33,3 | 5 | 37 | 42,5 |
| G 11/4 | 42 | 5,5 | 46 | 52 |
| G 2 | 59,7 | 6,5 | 65 | 73 |
| Specification | Information | How to order |
| Brass | Fixing nuts GN 543.1 are used for the fixing of oil level sight glasses when the wall thickness is under 4 mm. | Fixing nut GN 543.1-G1/2
Code No. 543.1 |
|
|
|
