Cranked handles

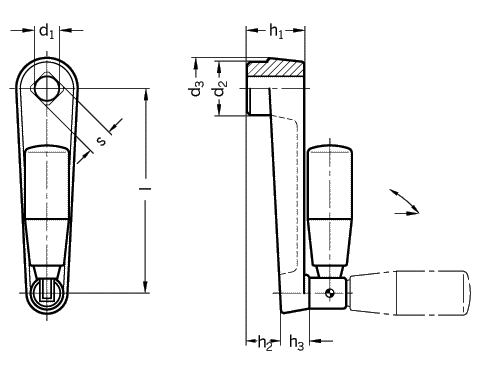

GN 471.3


Length l d1 H7 s H11 d2 d3 h1 h2 h3
  Bore (B) Square (V)           Retractable
handle
                GN 598.3

100 B 12 V 12 27 30 28 17 13 23
125 B 14 V 14 32 35 34 22 14 23
160 B 17 V 17 35 39 38 26 14 26
Specification Information How to order
Body
Aluminum
Gravity die casting

Plastic coated
black
RAL 9005 textured finish

Hub face turned

Retractable handles GN 598.3
Plastic (Duroplast)
black

Square boreDIN 79

 Cranked handles GN 471.3 with retractable handpiece are for applications where the handpiece must not protrude.

The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions.

A positive lock is achieved in the operating position by way of a taper seating.

 Cranked handle
GN 471.3-125-V14

Code No. 471.3
Length l 125
s (d1) V14


Cranked handles with retractable handpiece GN 471.3, select, inquiry, order, CAD downloadcranked handles gn 471cranked handles with retractable handpiece gn 472.3
