Cranked handles		 GN 471
GN 471.1

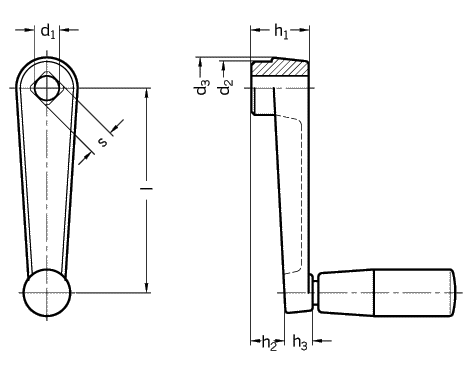

Length l d1 H7 s H11 d2 d3 h1 h2 h3
  Bore (B) Square (V)           Handpiece
  GN 471 GN 471.1 GN 471 GN 471.1

50 - B 8 - V 8 16 18 18 10 10 14
64 - B 10 - V 10 19 22 20 11 12 18
80 B 10 B 10 V 10 V 10 23 26 24 14 14 21

100 B 12 B 12 V 12 V 12 27 30 28 17 15 23
125 B 14 - V 14 - 32 35 34 22 18 26
160 B 17 - V 17 - 35 39 38 26 18 26
Specification Information How to order
GN 471
Body
Aluminum

GN 471.1
Body
Zinc die casting

Plastic coated
black
RAL 9005 textured finish

Hub face furned

Revolving handles GN 598
Plastic (Technopolymer)
black

Square boreDIN 79

 Cranked handles GN 471 / GN 471.1 are of modern design. Cranked handle
GN 471-80-B10

Code No. 471
Length l 80
d1(s) B10

Cranked handle
GN 471.1-50-V8

Code No. 471.1
Length l 50
s (d1) V8
