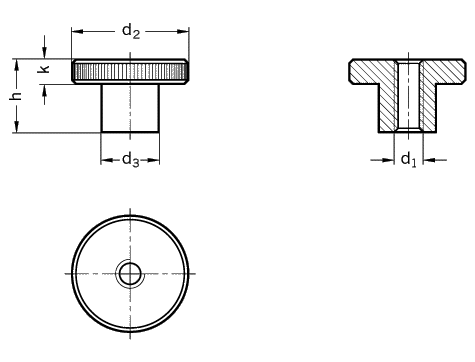

Knurled nuts		 Extract from
DIN 466


d1 d2 d3 h k

M 3 12 6 7,5 2,5
M 4 16 8 9,5 3,5
M 5 20 10 11,5 4

M 6 24 12 15 5
M 8 30 16 18 6
M 10 36 20 23 8

M 12 40 22 25 10
Specification   How to order
Steel

visible face fine turned

blackened

 Knurled nut
DIN 466-M6

Code No. 466
d1 M6
