for use in hygiene environment
St. Steel - Levelling feet

GN 341.1

d₁

d₂

l₁

d₃

l₂

l₃

l₄Adjustable
range

l₅ l₆ l₇ sw₁ sw₂ Static
load [N]
(See
information) 60 M16 125 150 175 200 24 45 13 32 4 16 45 20 12 27000 80 M16 128 153 178 203 24 45 13 32 5 18 45 20 12 24000 80 M20 152 177 202 252 30 56 16 40 5 18 56 24 16 24000 80 M24 176 226 276 35 67 19 48 5 18 67 30 20 24000 100 M16 130 155 180 205 24 45 13 32 6 20 45 20 12 21000 100 M20 155 180 205 255 30 56 16 40 6 20 56 24 16 21000 100 M24 179 229 279 35 67 19 48 6 20 67 30 20 21000

Specification

Information

How to order

Stainless Steel
Foot
German Standard No. 1.4301
sand blasted

Bolt, adjustable sleeve
German Standard No. 1.4305

Rubber undelay
NBR (PERBUNAN)
85 � 90 Shore
bonded

Assembly screw
loctited

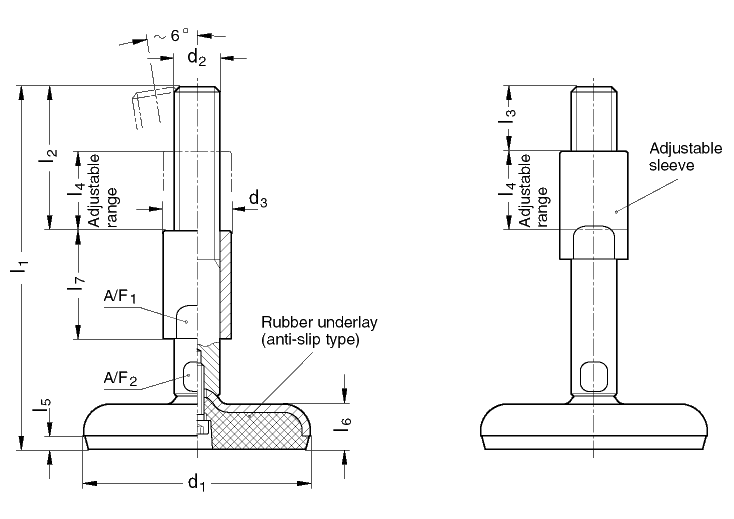

St. Steel - Levelling feet for application in hygiene environment GN 341.1 have been designed to meet requirements in the food industry:

With the convex shaped bolt head seat on the St. Steel foot, the formation of deposits is greatly reduced and the cleaning is simplified.

The rubber underlay is firmly bonded into the St. Steel foot.

The adjustable sleeve is shrouding the thread over its adjustable length and sharp edges and corners have been to a large extent avoided.

The load figures specified in the table above are based on a series of tests whereby a vertical load in relation to the horizontal plane of the foot is applied. If the above figures are exceeded, a permanent deformation of the St. Steel - foot can occur.

St.Steel - Levelling feet
GN 341.1-100-M20-180

Code No. 341.1
d₁ 100
d₂ M20
l₁ 180
