  		 with retractable safety handle GN 598.7
Handwheels
GN 322.7


Bore Code:
Bore without keyway = B + Bore dia.
Bore with keyway = K + Bore dia. Type D with revolving handpiece

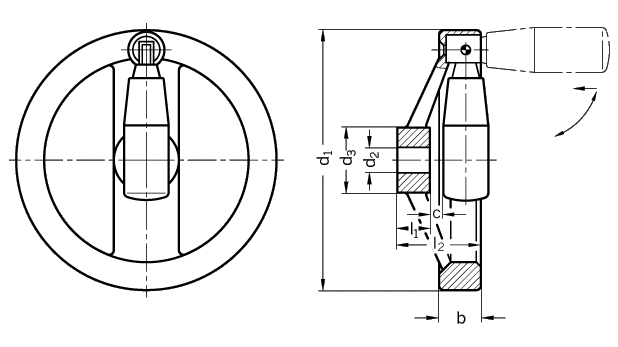

d1 d2 H7 d3 b c l1 l2
  Bore           Handpiece

125 12 - 31 24,5 6,5 18 44 23
140 14 - 36 24,5 7 19 45,5 23
160 14 16 36 25 6 20 47 26

200 18 20 42 25 7,5 24 52,5 26
250 22 - 48 26,5 12 28 61 26
Specification Information How to order
Aluminum
Gravity die casting

Hub machined
Rim turned and polished

Unmachined body
matt shot-blasted

Rim concentric and
square to bore

Parts for retracting mechanism
Steel, blackened

Retractable handles GN 598.7
Plastic (Duroplast)
black

KeywayDIN 6885/1

Cross holesGN 110

 Handwheels GN 322.7 with retractable handle GN 598.7 are suitable for applications where the "handle must not remain in the operating position.

In order to bring the handle into the operating position it has to be turned first through 90 to a stop against a torsion spring and then it is pushed against spring pressure into its hold position. By maintaining the forward thrust on the handle the handwheel can easily be rotated.

When releasing the handle the springs returns it back to the retracted position.

Handwheels GN 322
(without retractable handle)

Countersunk washers GN 184
(for handwheel retention)

 Handwheel
GN 322.7-125-B12-D

Code No. 322.7
d1 125
Bore Code B
d2 12
Type D
