  		 with retractable handle GN 598.3
Handwheels
GN 322.3


Bore Code:
without keyway = B + Bore dia.
with keyway = K + Bore dia. Type D with revolving handpiece

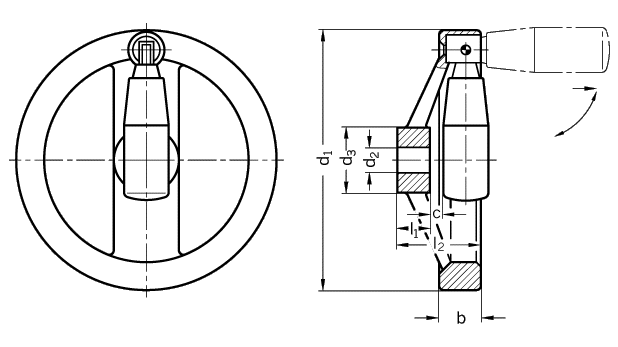

d1 d2 H7 d3 b c l1 l2
  Bore           Handpiece

125 12 - 31 24,5 4,5 18 44 23
140 14 - 36 24,5 5 19 45,5 23
160 14 16 36 25 4 20 47 26

200 18 20 42 25 5,5 24 52,5 26
250 22 - 48 26,5 10 28 61 26
Specification Information How to order
Aluminum
Gravity die casting

Hub machined
Rim turned and polished

Unmachined body
matt shot-blasted

Rim concentric and
square to bore

Parts for retracting mechanism
Steel, blackened

Retractable handles GN 598.3
Plastic (Duroplast)
black

KeywayDIN 6885/1

Cross holesGN 110

 Handwheels GN 322.3 with retractable handle are for applications, where the handpiece must not protrude.

These handwheels have the distinguishing feature that the handle and the retracting mechanism are completely encased within the rim of the wheel.

The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions.

A positive lock is achieved in the operating position by way of a taper seating.

Handwheels
(without retractable handle)GN 322

Countersunk washers
(for handwheel retention)GN 184

 Handwheel
GN 322.3-160-B16-D

Code No. 322.3
d1 160
Bore Code B
d2 16
Type D
