Adjustable hand levers
GN 300.1

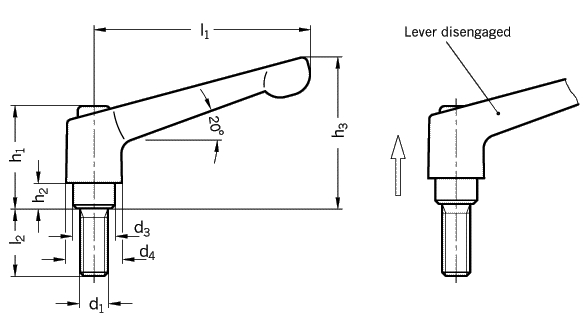

l1 d1 Length l2 d3 d4 h1 h2 h3
  metric / UNC

45 M 5 M 6 12 16 20 25 32 40 50 10 13 24,5 4 35
  1/4 x 20   20 25 32 40 45

63 M 6 M 8 16 20 25 32 40 50 63 13,5 17,5 31 6,5 45
  5/16 x 18   20 32 40 50 63

78 M 10   20 25 32 40 50 63 80 16 21 36 8 55
  3/8 x 18   25 32 40 50 63

92 M 10 M 12 20 25 32 40 50 63 80 19 24 43 11 65
  1/2 x 13   32 40 50 63

108 M 16   32 40 50 63 80 23 30 50,5 12 76
Specification Information How to order
Handle
Zinc die casting

Plastic coated
Standard colours
matt black (SW)
RAL 9005 textured finish
matt black (SZ)
RAL 9011 silk finish
orange (OR) RAL 2004
red (RT) RAL 3000
grey (GR) RAL 7031
silver (SB) RAL 9006

chrome-plated (CR)

uncoated (RH)

Internal parts
Stainless Steel
German Standard No. 1.4305

St. Steel - properties

 Adjustable hand levers GN 300.1 are the result of modern industrial design incorporating a particularly handy shape in addition to ergonomic aspects.

All such levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Should a rotation of the lever through 360 degrees be impossible, the insert can easily be rotated by the slot in the screw (after disengaging the lever).

Adjustable hand levers GN 300
(internal parts steel, blackened)

 Adjustable hand lever
GN 300.1-63-M8-32-SW

Code No. 300.1
Length l1 63
d1 M8
Length l2 32
Finish SW
