Pull to disengage
Adjustable hand levers

GN 101

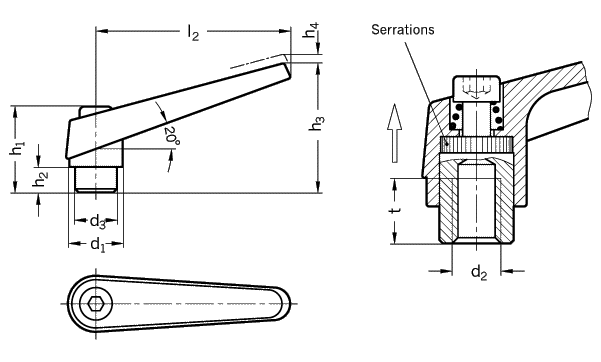

d1 d2     d3 h1 h2 h3 ~ h4 l2 t
  metric / UNC / UNF             min.

14 M 4 M 6   10 25 4,5 35 3,5 45 8
  10 x 32 10 x 24 � x 20

18 M 6 M 8   13,5 31 6,5 45 4 62 10
  1/4 x 20 5/16 x 18

22 M 8 M 10   16 36 8 52 4 74 14
  3/8 x 16 5/16 x 18 3/8 x 24

25 M 10 M 12   19 43 11 63 4 89 17
  3/8 x 16 1/2 x 13

30 M 12 M 16   23 50,5 12 76 5 108 22
1/2 x 13 5/8 x 11
Specification Information How to order
Handle
Zinc die casting

Plastic coated
standard colours:

matt black (SW)
RAL 9005 textured finish
orange (OR) RAL 2004
grey (GR) RAL 7031

Thread insert and screw
steel blackened

Adjustable hand levers with Stainless Steel (German Standard 1.4305) internal parts available under Code No. GN 101.1.

Adjustable hand levers GN 101 are the result of modern industrial design.

All such levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever disengages serrations and allowing to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Should a rotation of the lever through 360 degrees be impossible, the insert can easily be rotated by the slot in the screw (after disengaging the lever).

Adjustable hand levers GN 300
(internal parts steel, blackened)

Adjustable hand levers GN 300.1
(internal parts St. Steel)

Adjustable hand lever
GN 101-25-M12-GR

Code No. 101
d1 25
d2 M 12
Finish GR
