Knurled handwheels
GN 226

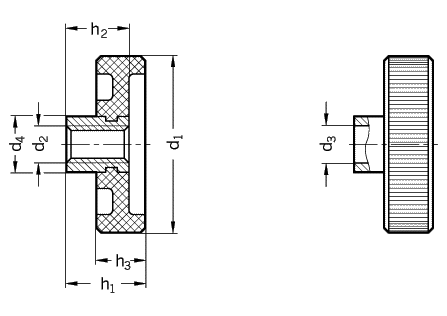

d1 d2 d3 H7 d4 h1 h2 h3
  Thread Bore (B)

50 M 8 M 10 B 8 B 10 18 25 20 15
63 M 10 M 12 B 10 B 12 20 30 24 18

80 - M 16 B 12 B 16 25 36 29 22
Specification Information How to order
Plastic (KU)
Duroplast (Phenolic)

black

Hub steel
blackened

Plastic (KT)
Technopolymer

black, matt

Hub steel
blackened

Cross holesGN 110

 Knurled handwheels GN 226 are mainly used instead of star and hand knobs for light adjusting or clamping applications.

Cover discs GN 226.1 widen the range of applications for these knurled handwheels.

 Knurled handwheel
GN 226-KT-50-M10

Code No. 226
Material KT
d1 50
d2 (d3) M10
