Indexing levers
GN 215


Type A without serrations Type B with 30 serrations

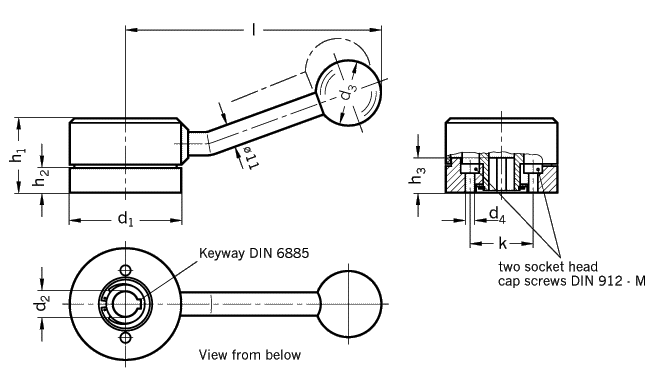

d1 d2 H7 d3 d4 d5 h1 h2 h3 max. k l w +0,5
  Bore with           shaft
  keyway (K)           length

54 K 10 K 12 32 5,2 44,5 37 13 16,5 30 122 22
60 K 14 K 16 32 5,2 50 39 15 18,5 36 125 19
Specification Information How to order
Steel

blackened

Cover plastic
black, with inserted Alu-disc
matt anodized, natural colour

Ball knob
Plastic, blackDIN 319

Keyway for bore K 10 : 3P9 x 1,1

Keyway DIN 6885/2
for bores > K 10

 With indexing levers GN 215 shafts can be turned through a predetermined angle and positively locked. To index, lift the lever against spring pressure from serrations (one hand control).

Limiting the indexing angle can be achieved with two dowels (sketch).

The bush is connected to the shaft via keyway.

The location flange is bolted to the machine with two socket head cap screws (M 5).

The lever, via the location pin, provides the connection between shaft and location flange.

The serrations are protected from swarf and similar particles by the cover. This cover can be inserted by hand (elastic segments engage into a groove) and removed with a screw driver.

Indexing mechanismsGN 200

Adjustable knob
(with stepless positioning)GN 700

 Indexing lever
GN 215-60-K14-A

Code No. 215
d1 60
Keyway K
d2 14
Type A
