St. Steel - Indexing mechanisms
GN 200

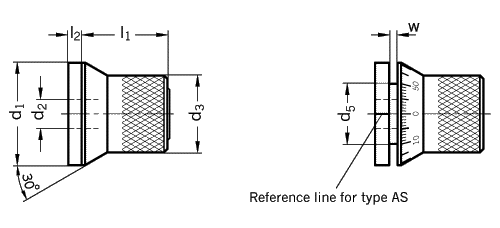

Type A without scale Type AS with scale 0 ... 50, 60 graduations
d1 -0,5 d2 H7     d3 d4 d6 l1 l2 l3 w
  Bore with keyway (K)     P.C.D.
for location
fixing holes		     Bore
length		 Stroke




44 K 10 K 12 33 23 33 37 6 31 4
52 K 12 K 14 K 16 42 31,5 41,8 37,5 6 31,5 4
Specification Information How to order
Stainless steel (NI)
German Standard No. 1.4305

Type AS:
LASER-engraved scale

Reference line
on location ring

Keyway DIN 6885/1
for bore K 10
Keyway DIN 6885/2
for bores > K 10

St. Steel - properties

 St. Steel-Indexing mechanisms GN 200 replace and simplify costly indexing mechanisms such as push handles, ratchet mechanisms, indexing pins and other safety devices.

Besides the standard scale (Type AS) the operating knob can be supplied with any othergraduation.

For graduations, sequence and positioning of figures and available graduations please refer to the detailed page when ordering.

Technical instructions

Indexing mechanisms GN 200
(Steel)

 St. Steel -
Indexing mechanism
GN 200-52-K12-AS-NI

Code No. 200
d1 52
Bore code  K
d2 12
Type AS
St. Steel NI
