St. Steel - Knurled nuts |
Extract from DIN 6303 |

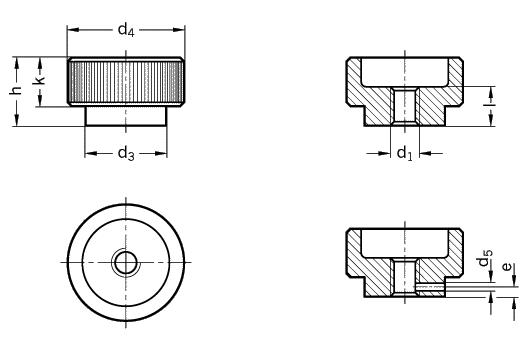

| Type A without dowel hole | Type B with dowel hole |
| d1 | d3 | d4 | d5 H11 | e | h | k | l |
| M 5 | 14 | 20 | 1,5 | 2,5 | 12 | 8 | 7 |
| M 6 | 16 | 24 | 1,5 | 2,5 | 14 | 10 | 8 |
| M 8 | 20 | 30 | 2 | 3 | 17 | 12 | 10 |
| M 10 | 28 | 36 | 3 | 4 | 20 | 14 | 12 |
| Specification | Information | How to order |
| Stainless Steel (NI) German Standard No. 1.4305 matt shot blasted |
Knurled nuts GN
420 (Plastic with St. Steel insert) |
St. Steel-Knurled
nut DIN 6303-M6-A-NI Code No. 6303 |
|
|
