male Lifting eye bolts |
Extract from DIN 580 |

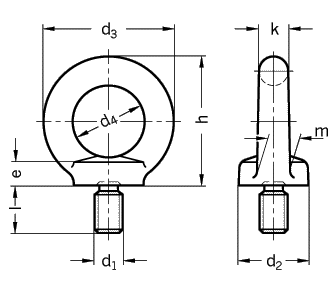

| d1 | d2 | d3 | d4 | e | h | k | l | m | F1 [N] | F2 [N] |
| M 8 | 20 | 36 | 20 | 6 | 36 | 8 | 13 | 10 | 1400 | 950 |
| M 10 | 25 | 45 | 25 | 8 | 45 | 10 | 17 | 12 | 2300 | 1700 |
| M 12 | 30 | 54 | 30 | 10 | 53 | 12 | 20,5 | 14 | 3400 | 2400 |
| M 16 | 35 | 63 | 35 | 12 | 62 | 14 | 27 | 16 | 7000 | 5000 |
| M 20 | 40 | 72 | 40 | 14 | 71 | 16 | 30 | 19 | 12000 | 8300 |
| M 24 | 50 | 90 | 50 | 18 | 90 | 20 | 36 | 24 | 18000 | 12700 |
| M 30 | 65 | 108 | 60 | 22 | 109 | 24 | 45 | 28 | 36000 | 26000 |
| M 36 | 75 | 126 | 70 | 26 | 128 | 28 | 54 | 32 | 51000 | 37000 |
| Specification | Information | How to order |
| Steel
Forged steel anealed Contact face machined zinc plated, blue passivated |
When installing male lifting eye bolts DIN 580 it is
of utmost importance to ensure that the face is in firm contact with the
mating face.
Do not apply load across the face of the ring ! Side loads across the eye plane are not permitted for safety reasons.Further information regarding load . The values given in the table above are only applicable when the component attached to the ring is in steel, cast steel or cast iron. |
Lifting eye bolt DIN 580-M16 Code No. 580 |
|
|
