St. Steel - Levelling feet |
GN 341 |

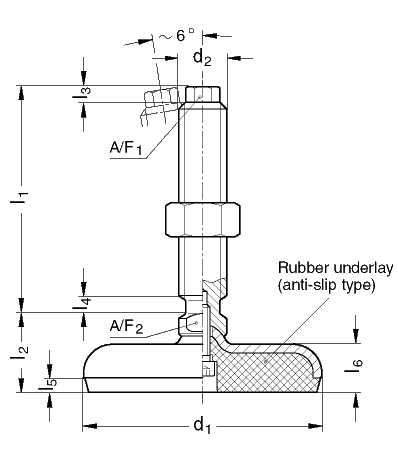

| Type A without nut | Type B with nut |
| d1 | d2 | l1 | l2 | l3 | l4 | l5 + 0,5 | l6 | A/F1 Outside hexagon |
A/F2 | Static load [N] (See information) | |||
| 60 | M16 | 75 | 100 | 125 | 150 | 29 | 5 | 8 | 4 | 16 | 10 | 12 | 27000 |
| 80 | M16 | 75 | 100 | 125 | 150 | 32 | 5 | 8 | 5 | 18 | 10 | 12 | 24000 |
| 80 | M20 | 100 | 125 | 150 | 200 | 32 | 6,5 | 8 | 5 | 18 | 13 | 16 | 24000 |
| 80 | M24 | 100 | 150 | 200 | 34 | 8,5 | 10,5 | 5 | 18 | 17 | 20 | 24000 | |
| 100 | M16 | 75 | 100 | 125 | 150 | 29 | 5 | 8 | 6 | 20 | 10 | 12 | 21000 |
| 100 | M20 | 100 | 125 | 150 | 200 | 35 | 6,5 | 8 | 6 | 20 | 13 | 16 | 21000 |
| 100 | M24 | 100 | 150 | 200 | 37 | 8,5 | 10,5 | 6 | 20 | 17 | 20 | 21000 |
| Specification | Information | How to order |
| Stainless Steel Foot German Standard No. 1.4301 sand blasted Bolt Rubber undelay Assembly screw |
A feature of the St. Steel - Levelling feet GN 341 is
the firmly bonded rubber underlay in the St. Steel - foot.
The bolt can be adjusted either at the hexagon of the upper end or at the spanner flats at the lower end. The static load is limited by any deformation of the St Steel - foot (3 mm thick). The load figures specified in the table above are based on a series of tests whereby a vertical load in relation to the horizontal plane of the foot is applied. If the above figures are exceeded, a permanent deformation of the St. Steel - foot can occur. |
St.Steel - Levelling feet GN 341--80-M16-150-A Code
No. 341 |
|
