Assembly examples Indexing mechanisms |
GN 200 |
|

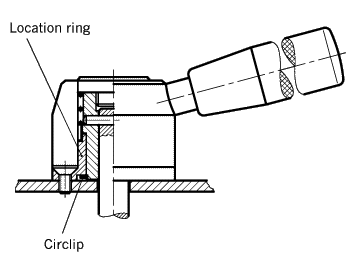

Example 1
The shaft is connected to the bush via a cross-dowel.
The location ring with countersunk screws and circlip also provide location of the whole indexing mechanism in an axial (lateral) direction.
The location ring also acts as a bearing to the shaft. |
|
Example 2
The shaft is connected to the bush with a key.
The location ring with countersunk screws and circlip also provide location of the whole indexing mechanism in an axial (lateral) direction.
The dowel, engaged in one of the three holes in the bush, provides one of the three indexing positions (in this case 60 degree movement). |
|
|
