Clamp nuts with double lever
GN 99.7

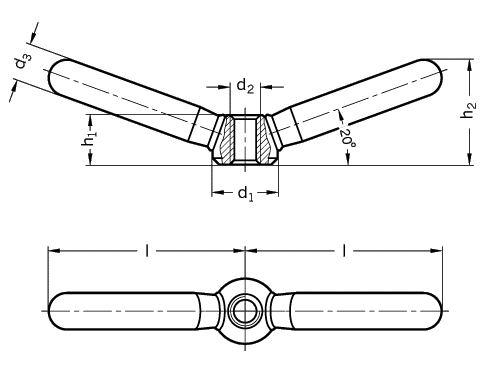

d1 d2 d3 h1 h2 ~ l ~

16 M 8 9 12,5 26 47,5
20 M 10 11 15 32 59,5
25 M 12 14 19 40 75,5

32 M 16 18 25 52 94,5
40 M 20 20 31 62 118
Specification Information How to order
Steel

matt shot-blasted

Shafts butt welded to nut

 Clamp nuts with double lever GN 206.1
(malleable cast iron)

Clamp nuts GN 99.5
(single lever)

 Clamp nuts
with double lever
GN 99.7-20-M10

Code No. 99.7
d1 20
d2 M10
