Clamping levers

GN 99.4

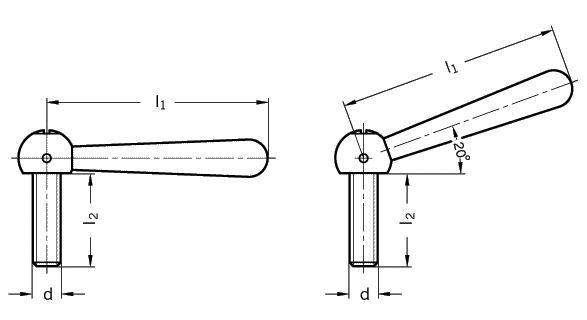

Type MS straight lever Type NS angled lever
l1 d Length l2

63 M 8 18 23 28 38 48
80 M 10 25 30 35 45 55
100 M 12 26 31 41 51 61

125 M 16 30 35 45 55 75
160 M 20 30 40 50 60 70
Specification Information How to order
Steel

turned and polished

Clamping leverDIN 99

Grub screwGN 551.1

Screw screwed to the lever and
cross-doweled

The addition of the screw to the clamping lever DIN 99 increases considerably its range of applications.

For most applications the listed screw lengths are sufficient, however other lengths and other screw points can be supplied.

Other levers, such as those listed below, can be supplied with screws:

Ball leversDIN 6337

Ball leversGN 35

Clamp nutsGN 99.5

Clamping lever
GN 99.4-125-M16-45-NS

Code No. 99.4
Length l1 125
d M16
Length l2 45
Type NS
