with swivelling plastic clamping pad
Clamping bolts
GN803

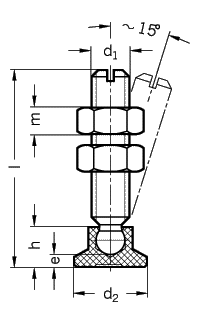

d1 Lengthl d2 e h m
M6 34 44 54 15 3,6 7,6 5,2
M8 43 53 66 15 2,7 7,6 6,8
M10 53 66 83 18 3,3 9,2 8,4
M12 66 83 103 21 3,3 10 10,8
Specification Information How to order
Grub screwsGN632

Thrust padsGN631

Hexagon nuts
ISO 4032
Steel
zinc plated, blue passivated

 The clamping pad GN631 can easily be snapped on and removed.

Levelling feetGN343.1 ... 343.8

 Clamping bolt
GN803-M8-53

Code No.803
d1M8
Lenght l53
The two hexagon nuts are included parts of the order.
