Angled ball joints |
Extract from DIN 71802 |

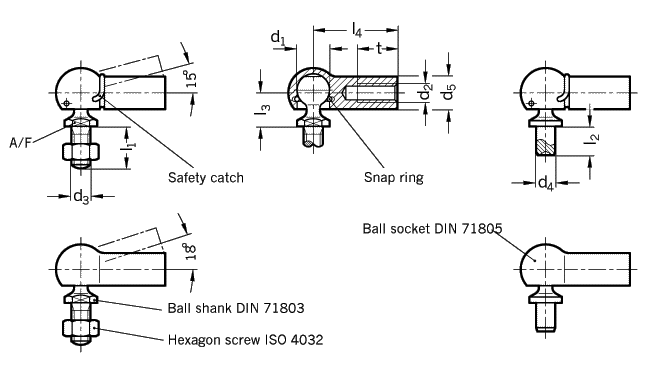

| Type CS with threaded ball shank with safety catch | Type BS with rivet ball shank with safety catch |
| Type C with threaded ball shank without safety catch | Type B with rivet ball shank without safety catch |
| d1 | d2 | d3 | d4 | d5 | l1 | l2 | l3 | l4 | t | A/F | min. | ||
| H9/h9 | Left hand | h11 | min. | Seperating | |||||||||
| thread | force[N] | ||||||||||||
| 8 | M 5 | M 5L | M 5 | 5 | 8 | 10 | 4 | 7,5 | 9 | 22 | 10,5 | 7 | 30 |
| 10 | M 6 | M 6L | M 6 | 6 | 10 | 12,5 | 4,5 | 8 | 11 | 25 | 11,5 | 8 | 40 |
| 13 | M 8 | M 8L | M 8 | 8 | 13 | 16,5 | 5 | 10 | 13 | 30 | 14 | 11 | 60 |
| 16 | M 10 | M 10L | M 10 | 10 | 16 | 20 | 6 | 13 | 16 | 35 | 15,5 | 13 | 80 |
| 16 | M 12 | M 12L | M 12 | 12 | 16 | 20 | 6 | 13 | 16 | 35 | 15,5 | 13 | 80 |
| 19 | M 14F = | M 14FL = | M 14x1,5 | 14 | 22 | 28 | 12 | 18</ |
