with movable bar Tommy screws |

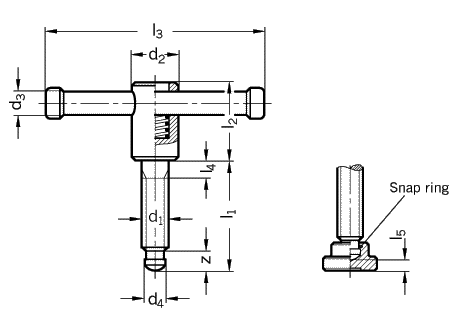

Extract from DIN 6306 |
| Type D without thrust pad | Type E with thrust pad |
| d1 | Length l1 | d2 | d3 | d4 h11 | l2 | l3 | l4 | l5 ~ | z ~ | ||
| M 10 | 40 | 50 | 18 | 8 | 8 | 32 | 80 | 10 | 3,6 | 8,2 | |
| M 12 | 50 | 60 | 20 | 10 | 8 | 35 | 100 | 10 | 4,5 | 8,6 | |
| M 16 | 55 | 70 | 90 | 24 | 13 | 12 | 40 | 120 | 10 | 5,3 | 10,6 |
| M 20 | 55 | 70 | 90 | 30 | 16 | 15,5 | 45 | 140 | 10 | 5,6 | 12,4 |
| Specification | Information | How to order |
| Steel blackened
Bar end caps Thrust point hardened Thrust padDIN 6311 |
The thrust point of these screws DIN 6306 is designed to be used with or without the thrust pad for clamping. The snap ring is a simple and quick method to connect the thrust pad to the tommy screw. In lieu of DIN 6311 a thrust pad GN 6311.1 can be used. In that case the tommy screw and the thrust pad have to be ordered separately. The bar can be moved to any position and will be maintained by the spring. The end caps are pressed on to the bar and thus limit the bar travel, they can also be supplied separately should the bar be plated first.
Thrust pads GN 6311.1 Tommy nutsDIN 6307 |
Tommy screw DIN 6306-M12-50-D
Code-No. 6306 |
|
|
|
