 distance bushings for indexing plungers gn 609cam action indexing plungers gn 612




  		 for cam action indexing plungers GN 612
Mounting blocks
GN 612.1

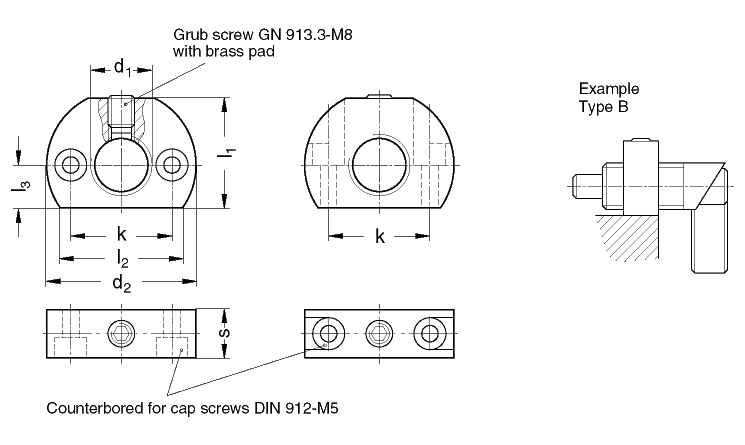

Type A fixing holes parallel to plunger Type B fixing holes vertical to plunger
d1 d2 k  0,1  l1 l2~ l3 s

M16 x 1,5 46 32 33 37 13 15
M20 x 1,5 46 32 33 37 13 15
Specification Information How to order
Steel

blackened

Grub screw GN 913.3
with brass pad

 Mounting blocks GN 212.1 broaden the mounting possibilities and are an added feature for the cam action indexing plungers GN 612.

They can also be used with indexing plungers GN 613-10.

Indexing plungers GN 613
(without head)

Cam action indexing plungersGN 612

 Mounting block
GN 612.1-M20x1,5-A

Code No. 612.1
d1 M20x1,5
Type A
