Cranked handles		 Extract from
DIN 469

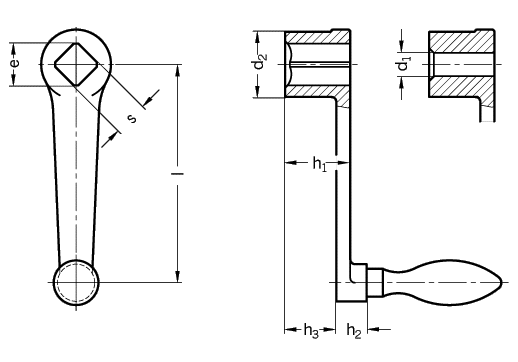

Type F with fixed handpiece Type D with revolving handpiece
Length l s H11 e min. d1 H7 d2 h1 h2 h3
  Square (V) (Column 1) Bore (B)         Hand-
                  piece

63 V 10 - 13,1 B 6 20 20 11 15 16
80 V 10 V 12 13,1 B 8 24 24 13 18 18
100 V 12 V 14 16,1 B 10 28 28 13 21 20

125 V 14 V 17 18,1 B 10 34 34 14 26 22
160 V 17 V 19 22,2 B 14 38 38 14 29 25
200 V 19 V 22 25,2 B 17 44 44 21 34 28

250 V 22 V 24 28,2 B 17 48 48 21 36 32
Specification Information How to order
Cranked handle
Malleable cast iron (GTW)
size 63
Cast iron (GGG)
size 80 ÷ 315

deburred and shot-blasted
Hub machined

Fixed handles DIN 39
Steel

Revolving handles DIN 98
Steel

Square bore DIN 79

 Cranked handles DIN 469 are available with steel handpieces as standard. If plastic handpieces are required, please specify on order. Cranked handle
DIN 469-125-V17-D

Code No. 469
Length l 125
s (d1) V17
Type D
