St. Steel - Cabinet U-handles

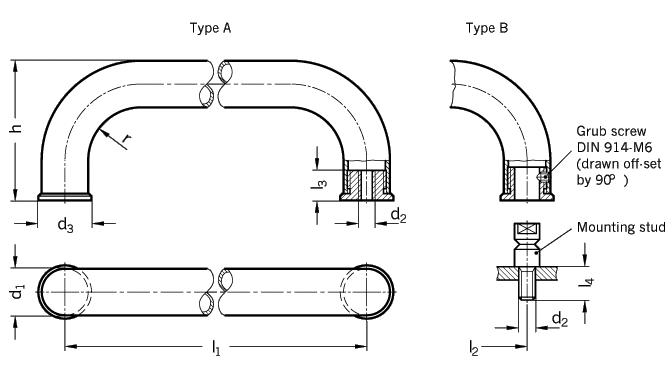

|Type A mounting from the back (threaded blind bore)||Type B mounting from the operator's side|
|d1||Length l1 +/-0,5||d2||d3||Length l2 +/- 0,3||l3||l4||h||r|
|Specification||Information||How to order|
Tube-� 28 x 2
Grub screw DIN 914-M6-8-NI
|St. Steel - Cabinet U-handles GN 426.5 can be mounted from the back (type A) as well as from the operator's side (type B).
In this case the stud is first screwed in from the machine side and then the handle is pushed on and secured with the grub screw.
The mounting studs allow the handles to be assembled back to back to produce a double handle. These handles can be produced in small quantities to lengths in accordance to customer requirements.
Cabinet U-handles GN 426
St. Steel - Cabinet U-handles GN 425
St. Steel - Cabinet U-handles GN 565.5
Code No. 426.5
