Folding Handles

GN 425.2

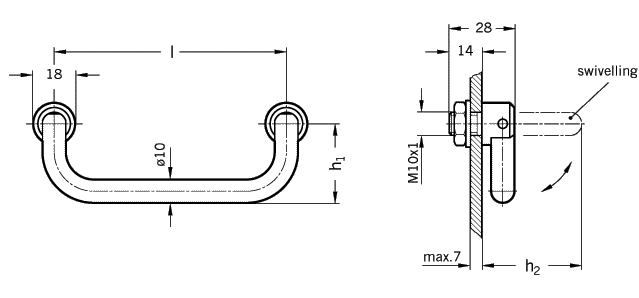

Length l h1 h2
100 34 44
120 34 44
180 34 44
Specification Information How to order

Chrome plated (CR)

Hexagon nuts
ISO 8675-M 10 x 1

DIN 125, steel
zinc plated, blue passivated

Stainless Steel (NI)
German Standard 1.4305

St. Steel properties

Folding handles GN 425.2 are used in such applications where minimal protrusion is required.

In both positions the handle is retained by a spring loaded detent.

Folding handle
GN 425.2-120-CR

Code No. 425.2
Length l 120
Finish CR
