Levelling feet GN 344

Foot plastic / Threaded stud steel
Levelling feet

GN 344

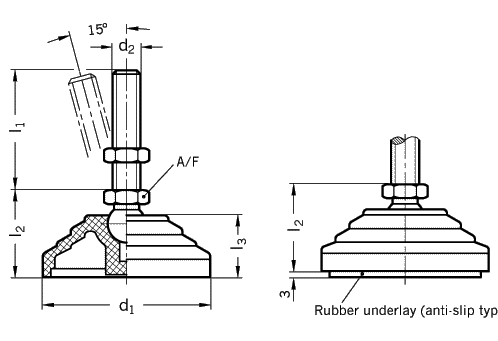

Type A without nut, without rubber underlay

Type B with nut, without rubber underlay

Type AG without nut, with rubber underlay

Type BG with nut, with rubber underlay

d₁	d₂	l₁				l₂	l₃	A / F	Ball-	Static
										load [N]
										(See
										information)

60	M 10	43	68	98		32	23	14	14	14000
60	M 12	43	68	98		32	23	14	14	14000
60	M 16	68	108	148	168	32	23	16	14	14000

60	M 16	58	98	138	158	42	23	24	24	18000
60	M 20	98	138	158	198	42	23	24	24	18000
60	M 24	98	158	198		42	23	24	24	18000

80	M 10	43	68	98		32	23	14	14	16000
80	M 12	43	68	98		32	23	14	14	16000
80	M 16	68	108	148	168	32	23	16	14	16000

80	M 16	58	98	138	158	42	23	24	24	18000
80	M 20	98	138	158	198	42	23	24	24	18000
80	M 24	98	158	198		42	23	24	24	18000

100	M 16	58	98	138	158	42	23	24	24	25000
100	M 20	98	138	158	198	42	23	24	24	25000
100	M 24	98	158	198		42	23	24	24	25000

125	M 16	58	98	138	158	66	45	24	24	28000
125	M 20	98	138	158	198	66	45	24	24	28000
125	M 24	98	158	198		66	45	24	24	28000

Standard sheet GN 344 - Specification, Information, How to order
